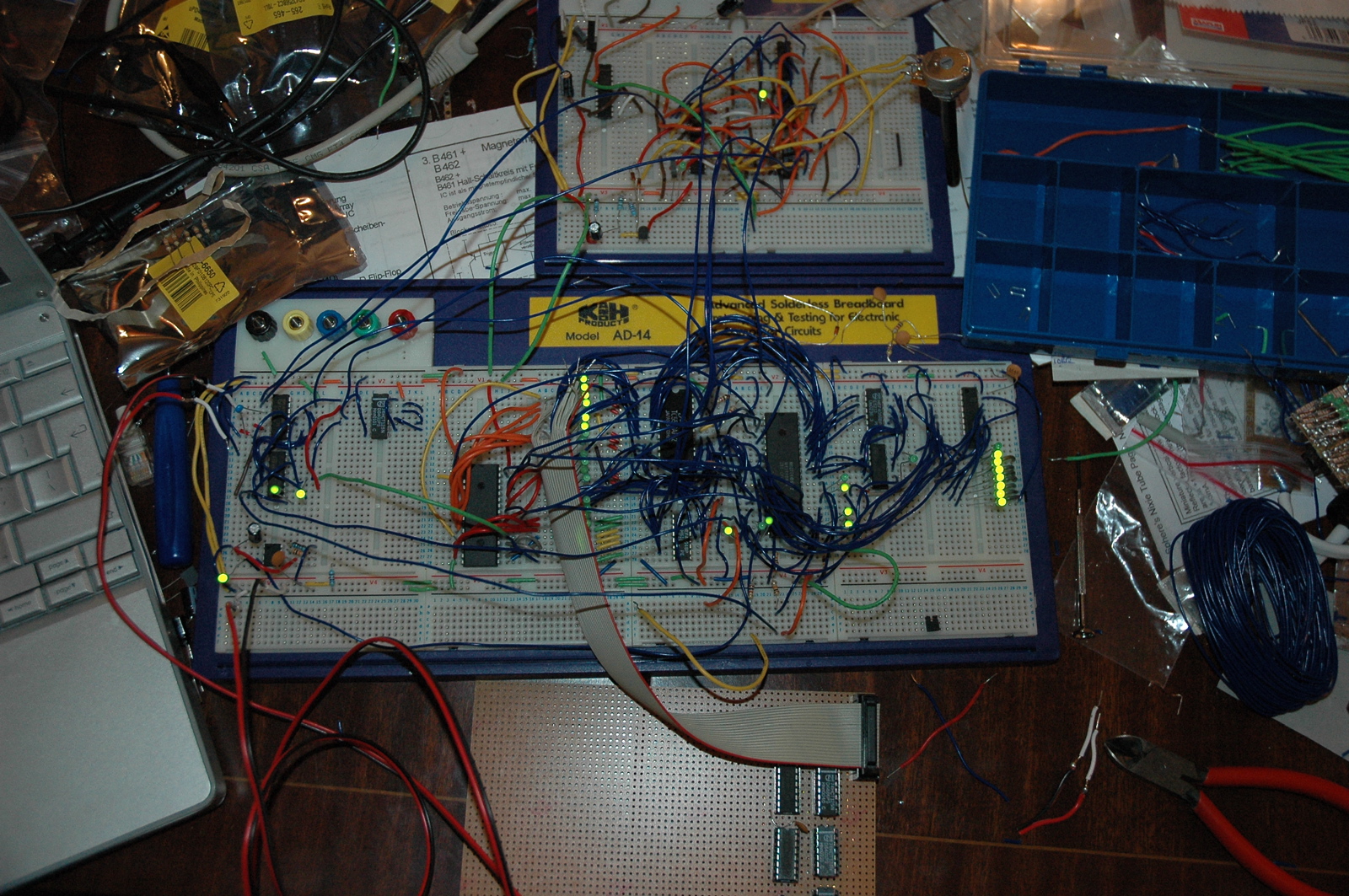

A proto-computer. Top breadboard: RS232 decoder. Bottom perfboard: 16 bit counter with tri state outputs. Main breadboard: left - chip select logic, middle left - AMD Am29F010B flash ROM, middle right - buried under blue wire - 2K Toshiba static RAM, to its right the Z80. Rightmost, simple output device with 8 LEDs.
