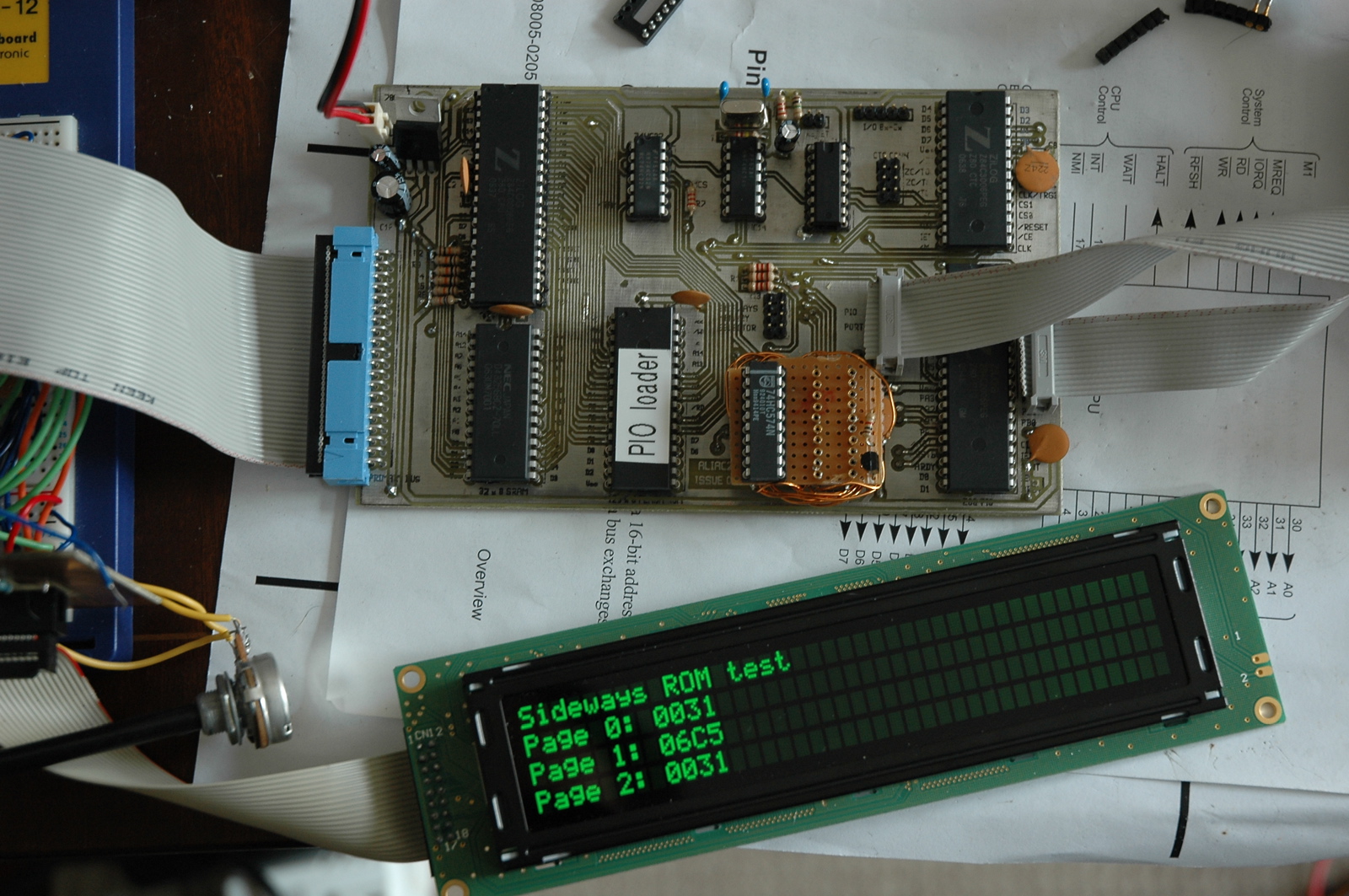

The printed circuit board, warts and all! Left to right - top row, Z80 CPU, 74HC32 quad OR gate, 74HC14 inverter, 74HC138 decoder, Z80 CTC. Bottom: 32K SRAM, 128K flash ROM, 74HC574 flip flop (ROM page selector), Z80 PIO.
